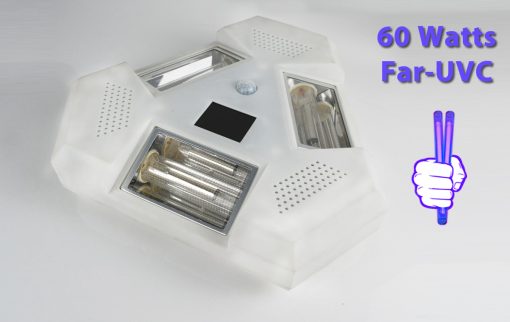

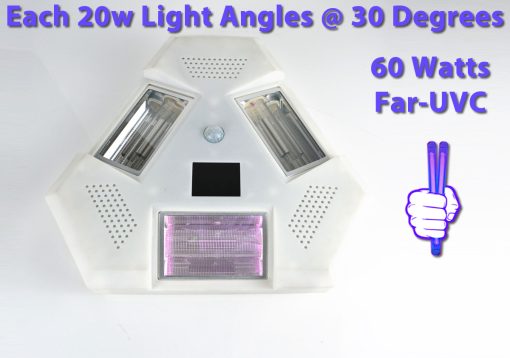

60w Filtered Far-UVC 222 nm Triple 222nm Far-UV 20-watt Filtered Lamps at 30 Degree Angles with Remote, Motion Sensor and Timer

$2,799.00

First UVC Buy Manufacturer Direct - $1,320.00

Description
FDA NOTICE

Each 60-Watt Filtered 222nm Far-UVC Lamp is hand-assembled and manufactured using three 20w far-UVC light modules in an official ISO9001 Excimer Far-UV Light Factory (quality management systems) delivered by the Agency for International Standardization. To provide the highest-quality Far-UV light products globally, a battery of testing that includes but is not limited to: Microbiological Effectiveness Test, IEC62471 (photobiological safety inspection), BACL ( 222m, wavelength test), and CE, FCC, RoHS Certifications.

● LCD Control Board with Remote Control
● Motion Sensor （Infrared）
● Timer Module For Looping
● 20-Watt Safety Filter Technology (Narrowband 222nm Emission) on three lamps (60 Watts Total Far-UVC)
● ZERO Mercury – Environment Friendly
● 60-Watts Peak Wavelength 222nm
● Minimal Ozone Emission
● Wide Operating Temperature
● 60-Watts Instantaneous On/Off

When you need 60-Watts of Filtered 222nm, out of a single Far-UVC Lamp, make sure your Far UVC choice is always QuantaDose for the best Far-UVC lighting to meets your AP-UVGI needs. Our experts are standing by to assist you!

The minimum quantity factory direct price is $1320 each

Sample Fee for under 5 units adds $100.00 to the order total!

Shipping cost is determined by location and method of delivery service requested.

>10 units = $1320 for each unit

>50 units = $1100 for each unit

+100 units = $980 for each unit

QuantaGuard Times Three 20W Excimer Lamp Details

Input Voltage(V): DC 24V

Lamp Luminous Efficiency(lm/w): 5000

Warranty(Year): 1-Year

Support Dimmer: No

Lighting solutions service: 222nm Far Uvc Disinfection

Lifespan (hours): 4000

Voltage: 220V

Application: Home, Hotel, Office, Retail spaces, Occupied areas, General areas, Restaurants, Commercial locations, Airport, School

Power Supply: DC

Portable: No

Light Source: Quartz Tube

Peak wavelength(nm): 222

UV Optical Power(μW/cm2): 5000

Appplication Area(㎡): 30

Switch Mode: Remote Control, Manual Button, Bluetooth, Motion Sensor

Rated Power: 60 Watt Far-UVC (Three 20w Modules)

UV Wavelength: FAR-UVC 222nm

Safety Requirement: Mercury Free

Material: Quartz Glass Filter, Aluminum Alloy, Sandblasting Oxidation (Silver)

Operating Temperature Range: -20℃ to +50℃

Warranty: 12 months

Life Span: 4000+

Certification: CE/FCC/RoHS

Beam Angle: 60vdegree

UV lamp: 222nm

Categories: 24V Far-UVC Lights, 60W 222nm Far-UVC Light, QuantaGuard Tags: 222nm Far-UVC, 60-Watt Far-UVC, Excimer Bulb

FDA DISCLAIMER – FOOD AND DRUG ADMINISTRATION STATEMENT
The statements made within this website have not been evaluated by the U.S. Food and Drug Administration. These statements and the products of this company are not intended to diagnose, treat, cure or prevent any disease. Additional UVC light regulation requirements may be needed for sale or distribution in Hawaii, Indiana, New Mexico, Wyoming, and the US Territory of Puerto Rico.

CAUTION: Far-UVC sources have not been tested for photosensitive individuals or those exposed to photo-sensitizing agents.
CAUTION: Far-UVC may help to reduce the number of germs and microbes, but it will not eliminate them.
NOTE: Far-UVC is designed to sanitize air and surfaces using far ultraviolet C (Far-UVC). Research has shown Far-UVC light to be as or more effective in inactivating microbes than UVC light. Unlike conventional UVC, Far-UVC does not require the use of UV protective equipment when UVC wavelengths greater than 230nm are filtered from the Far-UVC light source. [1] [2] [3]
NOTE: The actual inactivation rate of microbes on surfaces and air will vary based on the type of microorganisms and the length of exposure time irradiated.
NOTE: QuantaDose issued a press release that offers an easy spreadsheet calculator tool to help Far-UVC light designers determine time allowance with a known power and distance to help figure out the time necessary to be effective and when the maximum levels of safe 222nm exposure levels are reached under current international standards. USA 22 mJ/cm2 EU 30 mJ/cm2

Download it here Excel Doc. (Far-uvc-light-222nm-irradiance-time-distance-power-calculation-tool)

NOTE: Far-UVC is to be used combined with all safety measures and is not intended as a replacement or modification to an existing cleaning and sanitization program.
NOTE: Far-UVC a KrCl emitter has a nominal operational life of >3000 hours. If the visible dim violet glow is no longer detected, the Far-UVC lamp must be replaced. A QuantaDose UVC test card is included for Far-UVC light testing as well.

REFERENCES
[1] Welch, D., Buonanno, M., Grilj, V. et al. Far-UVC light: A new tool to control the spread of airborne-mediated microbial diseases. Sci Rep 8, 2752 (2018). https://doi.org/10.1038/s41598-018-21058-w
[2] Buonanno, M., Ponnaiya, B., Welch, D. et al. Germicidal Efficacy and Mammalian Skin Safety of 222-nm UV Light; Columbia University Medical Center; 2017; https://pubmed.ncbi.nlm.nih.gov/28225654/
[3] Manuela Buonanno, David Welch, Igor Shuryak, David J. Brenner; Far-UVC Light Efficiently and Safely Inactivates Airborne Human Coronaviruses; Columbia University Medical Center; 2020; https://www.researchsquare.com/article/rs-25728/v1
